Avtech

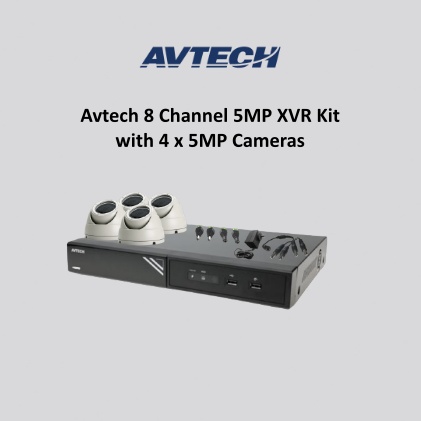

Avtech 8 Channel 8MP XVR Kit with 4 x 5MP Turret Cameras
Kit Includes:
- 1 x Avtech 5MP 8 Channel XVR
- 4 x Avtech 5MP IR Turret Cameras with 3.6 Lens
- 1 x XVR Power Supply
- 1 x 12VDC 4Amp Camera Power Supply
- 1 x 4 Way Power Splitter
- 8 x Baluns
- 4 x Male DC Plugs, 4 x Female DC Plugs
- 1 x Mouse
- 1 x Hard Drive Bay (Maximum 10TB)
- No Hard Drive Included
- APP: Eagle Eyes for Remote Viewing for iOS & Android devices
- P2P Eazy Networking is available to connect this device easily
- Free Phone Support
- Two Year Warranty
XVR: DGD1009AV
- 8 Channel High Definition Pentabrid XVR
- 5MP recording for High-Definition Analogue Cameras
- 8 Channels of TVI / Analogue HD / 960H video input
- Maximum of 8 x IP Channels, Requires POE Switch
- 4K Resolution Display
- HDMI output at up to 4K Resolution
- Dimensions (mm) 345(W) × 58.8(H) × 223(D) Net Weight (kg) 2.5
- 1 Hard Drive Bay (Maximum 10TB)
- No Hard Drive Included
Cameras: DGC5205TSE/36
- 5MP Avtech Turret Camera with 3.6mm Lens
- Video Output Mode: AHD/CVI/TVI/CVBS
- Camera Image Sensor: 1/2.9" SONY CMOS, Resolution: 5MP
- Effective Pixels: 2048 x 1536
- TV System: PAL/NTSC
- Electronic Shutter: 1/25s~1/50,000s, 1/30s~1/60,000s
- S/N Ratio: More than 48dB
- Scanning System: Progressive Scan
- Lens Focus Length: 3.6, Focus Control: Manual, Type: Manual
- Pixels: 5M Pixels
- Night Vision Infrared LEDs: 4 PCS, Infrared Distance: 20M
- Day/Night, OSD Menu Language
- White Balance: Auto / Manual, Gain Control: Auto
- Housing: IP66
- IR Cut Filter
- Operation Temperature: -25℃ ~ +50℃ RH95% Max
- Power Source: DC12V±10%, 1Amp
- Dimension: 125(W) x 105(H) x 135(D)mm, Weight: 900g
