Uniview

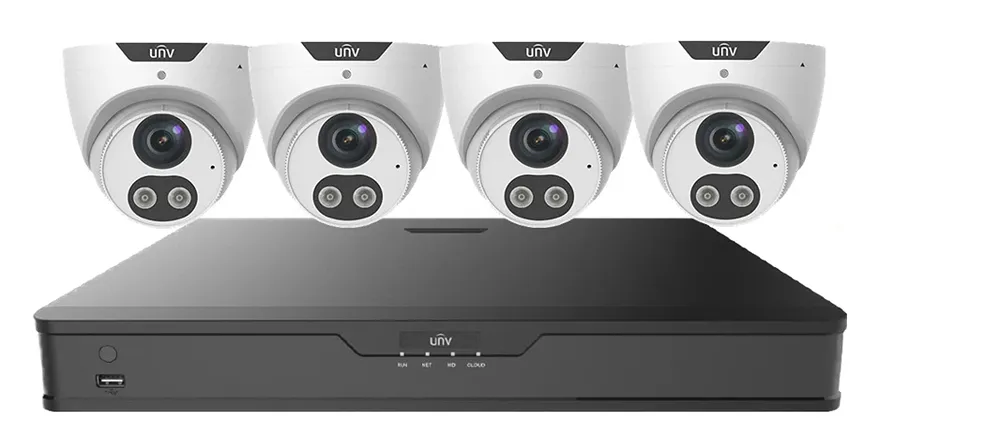

Uniview 8 Channel DVR and 4 x 5MP Turret Cameras
Kit Includes:
- 1 x Uniview 8MP 8 Channel XVR
- 4 x Uniview 5MP IR Turret Cameras with 2.8 Lens
- 1 x XVR Power Supply
- 1 x 12VDC 4Amp Camera Power Supply
- 1 x 4 Way Power Splitter
- 8 x Baluns
- 4 x Male DC Plugs, 4 x Female DC Plugs
- 1 x Mouse
- 1 x Hard Drive Bay (Maximum 6TB)
- No Hard Drive Included
- APP: EZView for Remote Viewing for iOS & Android devices
- P2P Networking available to connect this device easily
- Free Phone Support
- Two Year Warranty
NVR: XVR301-04Q3
- Uniview XVR301-08Q 4K 8-Channel XVR
- H.265
- Pentabrid (HDTVI / HDCVI / AHD / CVBS / IP) XVR
- 8 x BNC Inputs and supports 2 x IPC
- Support H.265 / H.264 video formats
- Support audio over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 1080 resolution) – Same display output as VGA
- 1 x CVBS output
- 1 x 3.5″ SATA HDD port (max. 6TB HDD per port)
- 2 x USB ports (two rear)
- 1 x RS-485 port
- 8 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)
- 1 x LAN port (10/100Mbps)
- No Alarm input ports
- No Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
Cameras: UAC-T125—AF28LM
- Uniview UAC-T125-AF28LM 5MP AHD (Analogue HD) Camera
- LightHunter
- Smart-IR (40m)
- 120dB True-WDR
- Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens
- Built-in Mic
- Can Be Converted to HDCVI / HDTVI / CVBS
- High quality imaging with 5MP resolution
- TVI / CVI / AHD / CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- 120dB true WDR technology enables clear image in strong light scene
