Baluns

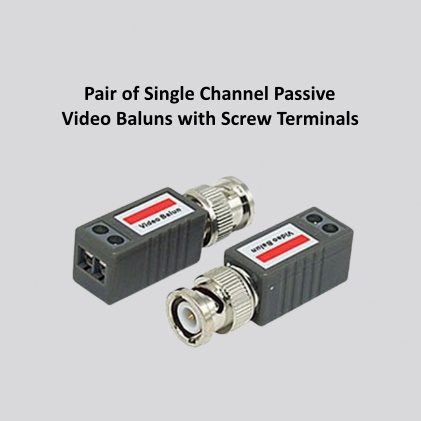

Pair of Single Channel Passive Video Baluns with Screw Terminals
Description
- One pair of video baluns, with screw type connectors,
- Full motion CCTV video at a distances up to 330m when used with any passive transceiver
- Up to 1500m with any active UTP video receiver
- Connect to a CAT5E or CAT6 cable.
- Connectors: Male BNC and Press Fit terminal blocks
- NTSC, PAL and SECAM video format
- Frequency response: DC to 8MHz
- Impedance:BNC:75 Ohms, Terminal :100 Ohms
- Working Temperature 10C to 70C, Humidity: 0 to 95%
- Dimension: 39mm x 16mm x 19mm (excluding connectors), Weight: 46g/pair
- One Year Warranty
