Raysharp

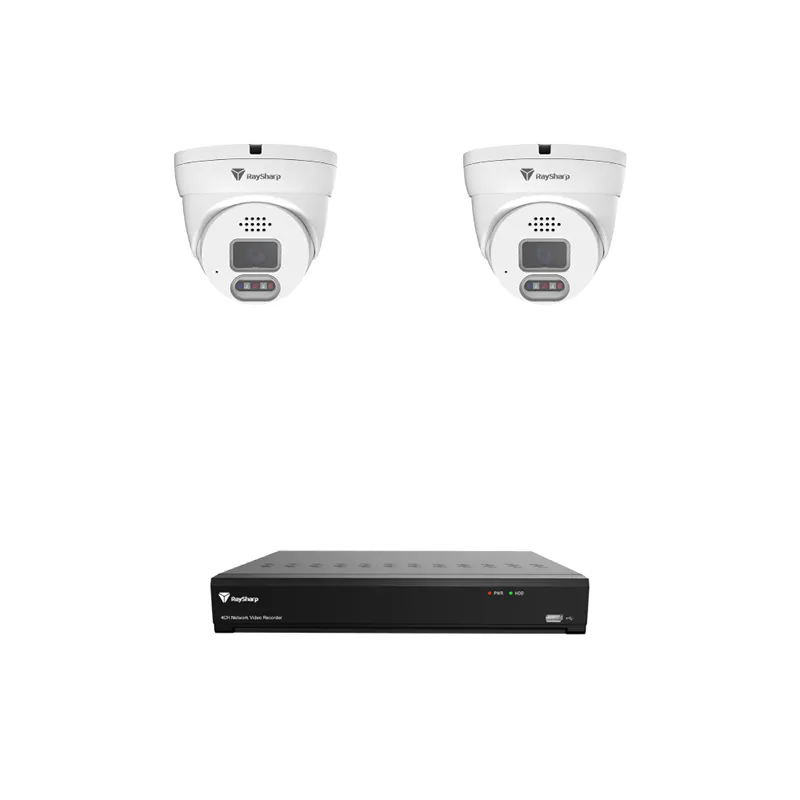

Raysharp 4 Channel 8MP DVR & 2 x Raysharp 5MP Turret Cameras
Kit Includes:
- 1 x Raysharp 8MP 4 Channel DVR
- 2 x Raysharp 5MP IR Turret Cameras with 2.8 Lens
- 1 x XVR Power Supply
- 1 x 12VDC 4Amp Camera Power Supply
- 1 x 4 Way Power Splitter
- 4 x Baluns
- 2 x Male DC Plugs, 2 x Female DC Plugs
- 1 x Mouse
- 1 x Hard Drive Bay (Maximum 6TB)
- No Hard Drive Included
- APP: EZView for Remote Viewing for iOS & Android devices
- P2P Networking available to connect this device easily
- Free Phone Support
- Two Year Warranty
DVR Description
- Raysharp 4 Channel High Definition 8MP (4K) DVR
- Model RS-D7204HR-NS-T-E
- 4-Channel Pentabrid (HDTVI / AHD / HDCVI / CVBS / IP) DVR – Digital Video Recorder
- H265
- AI
- 1U Case
- 4-Channel BNC inputs
- Supports up to 4K Analog cameras and IP camera inputs
- Supports HDCVI / AHD / HDTVI / CVBS / IP video input
- Supports up to 6 channels of IP camera input (when NOT using any Analogue channels) with a maximum input bandwidth of 36Mbps
- Supports dual-stream video compression with H.264 / H.265
- Supports the standard ONVIF protocol
- With 4 alarm inputs and 1 alarm output
- Supports a variety of AI functions: face detection, perimeter intrusion detection, line crossing detection, detection of people and vehicles, intrusion, entry into area, and exit from area
- Equipped with 1 built-in hard disk drive slot and 1 external eSATA
- Allows for remote access via mobile devices (App = RXCamView) and computers
- Supports external alarm devices and has an RCA interface for voice intercom
- No Hard Drive included
- Two Year Warranty
Camera Description
- 5MP 2.8mm High-Definition Analogue IR Turret Camera
- Dual Light 5MP Smart-Dual-Light (30m IR + 25m White-Light)
- High quality image
- TVI/AHD/CVI/CVBS
- Product Code RS-CA358TKRB-L-LF28W-M
- Built-in microphone with increased sensitivity and Audio Over Coaxial technology
- 5MP HDTVI / AHD @ 20 fps, 4Mp HDTVI / AHD / HDCVI @ 25fps
- 1/2.7″ Progressive CMOS high-sensitivity sensor
- Minimum illumination: 0.04 Lux @ F1.0 (0 Lux white light / IR on)
- Lens: f=2.8 mm (horizontal angle 96.51°)
- OSD menu with control via coaxial cable
- 3D DNR filter
- Selectable HDTVI/AHD/CVI/CVBS operating mode – Fully compatible with Hikvision (HD-TVI, Turbo HD), Dahua (HD-CVI) and all others supporting AHD, TVI, CVI and Analog standards
- Metal housing for outdoor installation (IP67) – 40°C ~60°C
- Power supply: 12Vdc / 4W
- IR-cut filter with auto switch (ICR)
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- 3-Axis
- Weatherproof IP67 IR Camera
- Power 12V DC
- Colour: White
- Warranty 2 Years
